Data Sheets

Here you can view Data Sheets for our entire product range, simply 'click' on the Data Sheet Icon for the product that you are interested in and the Data Sheet will open in PDF format in the same window. Just click the back button on your browser to return to the Data Sheet page.

Larger images of the products can also be viewed by clicking on the product photo

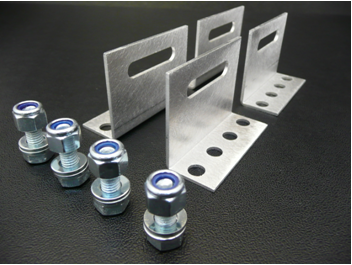

SM50RA

50mm right angle surface mount brackets

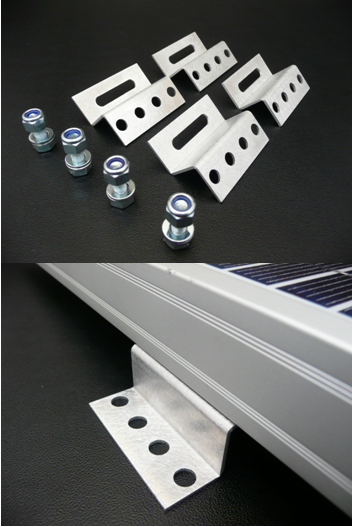

SM50

50mm 'Z' shape surface mount brackets

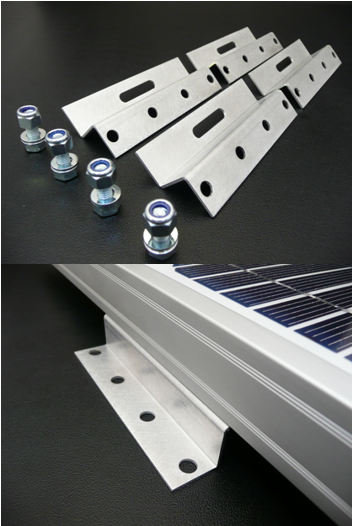

SM100

100mm 'Z' shape surface mount brackets

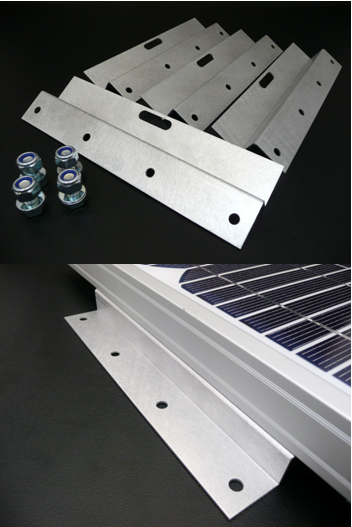

SM200

200mm 'Z' shape surface mount brackets

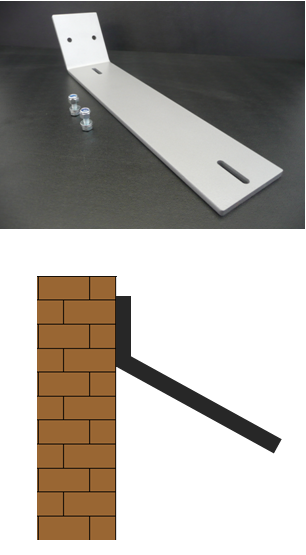

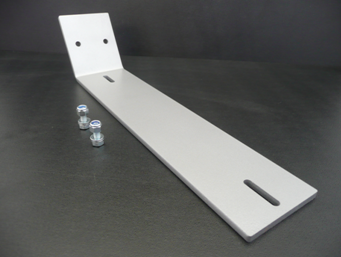

WM310

310mm wall mount bracket

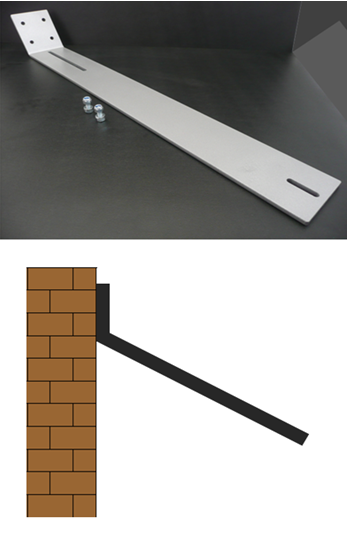

WM555

555mm wall mount bracket

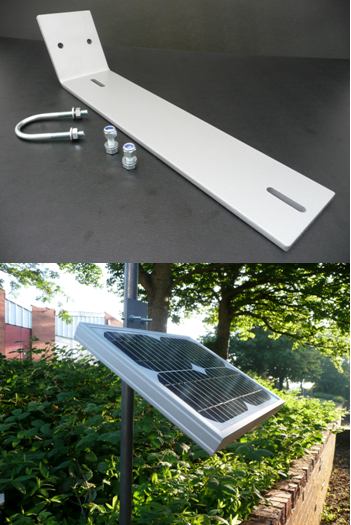

PM310

310mm pole mount bracket

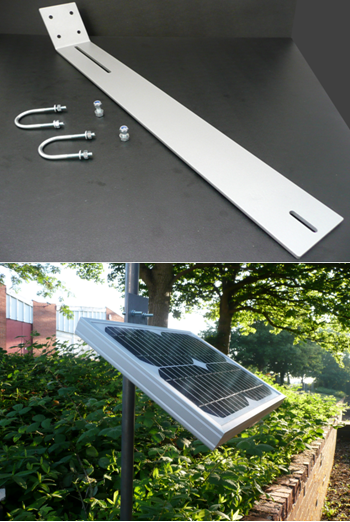

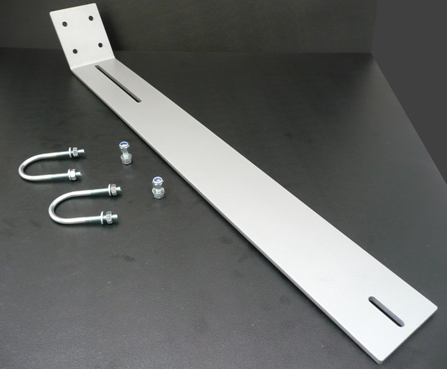

 PM555

555mm pole mount bracket

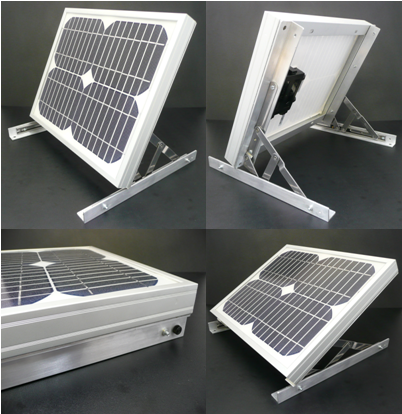

AF300

300mm adjustable frame



AF450

450mm adjustable frame
