Wall Mount Brackets

Our wall mount brackets provide a simple and attractive solution to mounting your solar panel to a wall or other vertical surface

Brackets are manufactured from 5mm thick mild steel, are completely rigid and finished with an exterior grade paint finish. These brackets feature 'mounting slots' providing a high degree of flexibility when mounting your panel, which means they are suitable for various sizes of solar panel

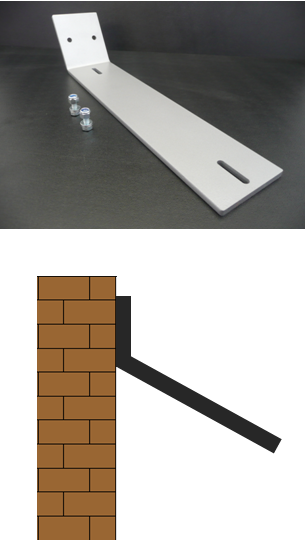

WM310 - 310mm wall mount bracket

£ 27.50

Kit consists of:

1 x 310mm wall mount bracket
2 x M6 nuts, bolts and washers to attach the bracket to your solar panel

  • Suitable for solar panels with mounting hole spacing between 230mm and 285mm
  • Fixed 30 degree angle from the horizontal
  • Manufactured from 5mm mild steel
  • Exterior grade paint finish
  • Weight 1.25Kg approx

    Fittings for attaching the bracket to the mounting surface are not included as these vary for different applications

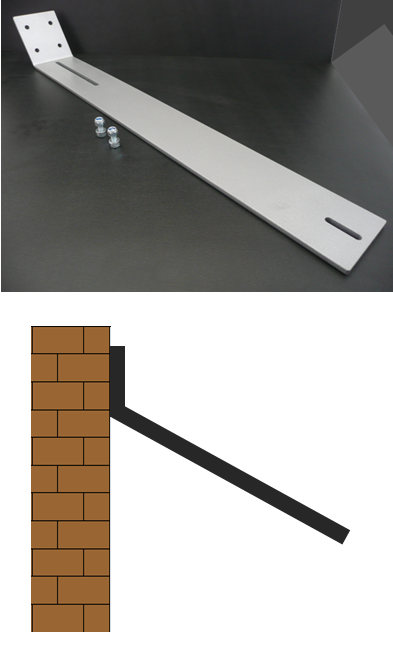

WM555 - 555mm wall mount bracket

£ 34.50

Kit consists of:

1 x 555mm wall mount bracket
2 x M6 nuts, bolts and washers to attach the bracket to your solar panel

  • Suitable for solar panels with mounting hole spacing between 370mm and 535mm
  • Fixed 30 degree angle from the horizontal
  • Manufactured from 5mm mild steel
  • Exterior grade paint finish
  • Weight 2Kg approx

    Fittings for attaching the bracket to the mounting surface are not included as these vary for different applications
